Homeowner/Landowner Zero Turn Mowers

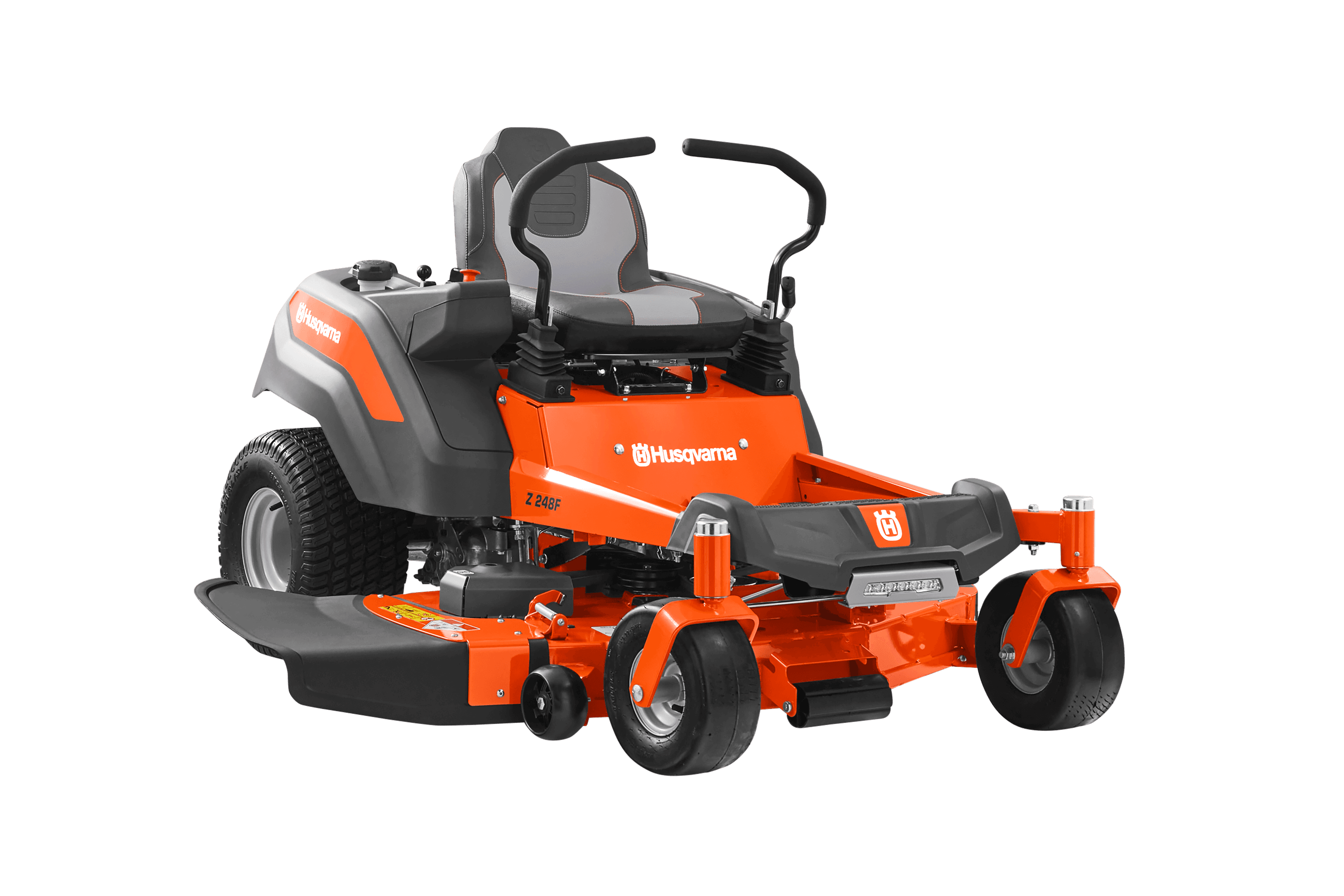

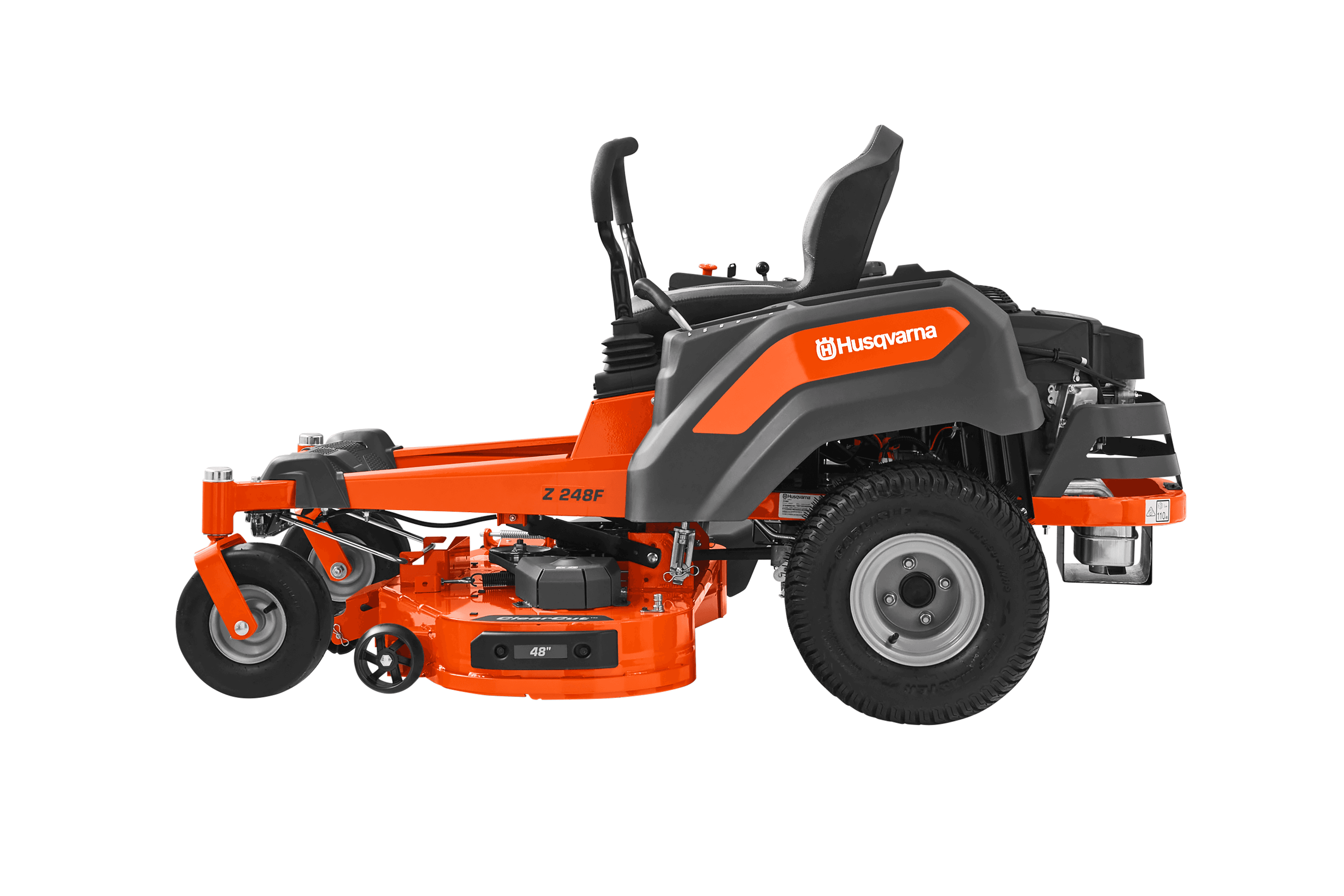

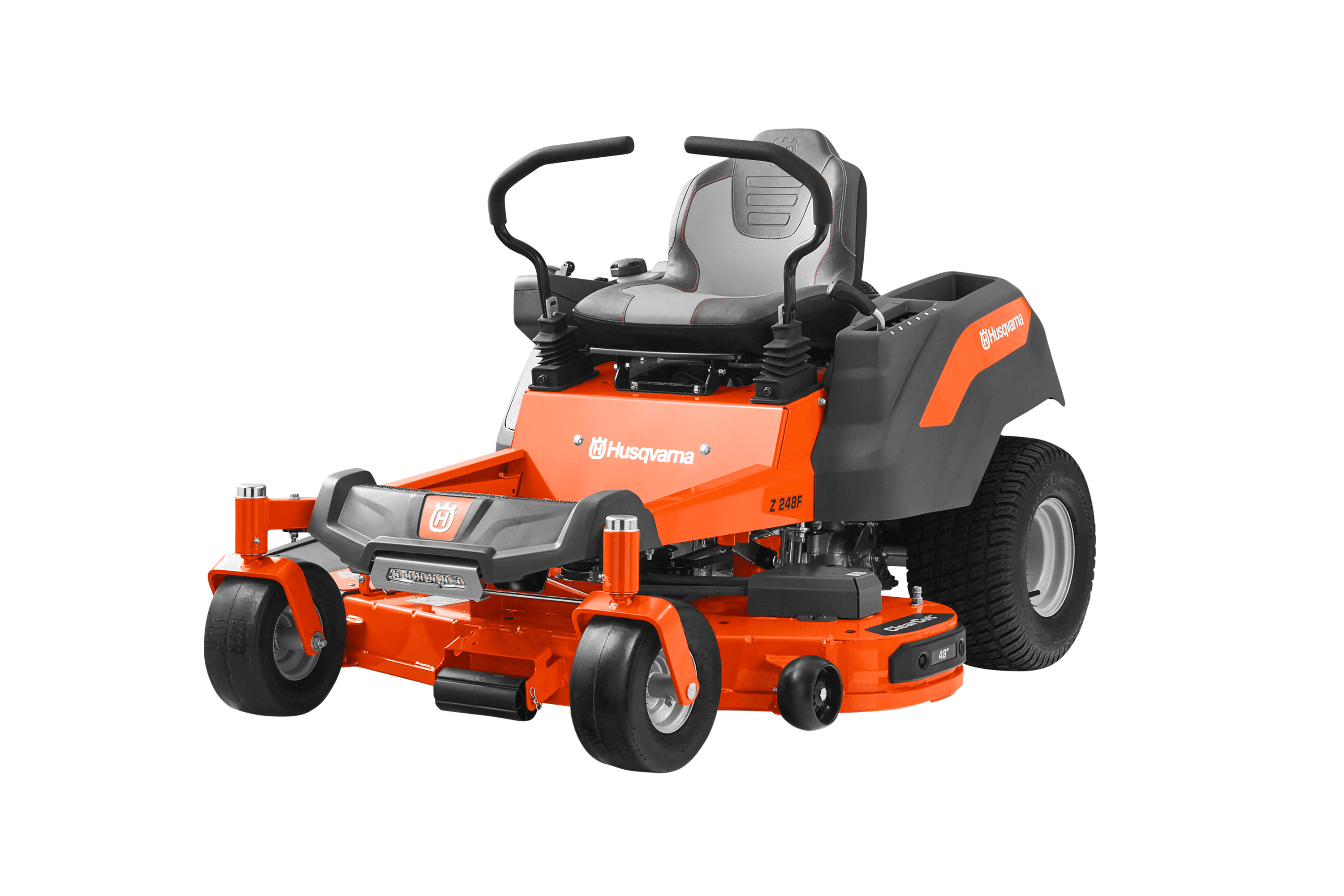

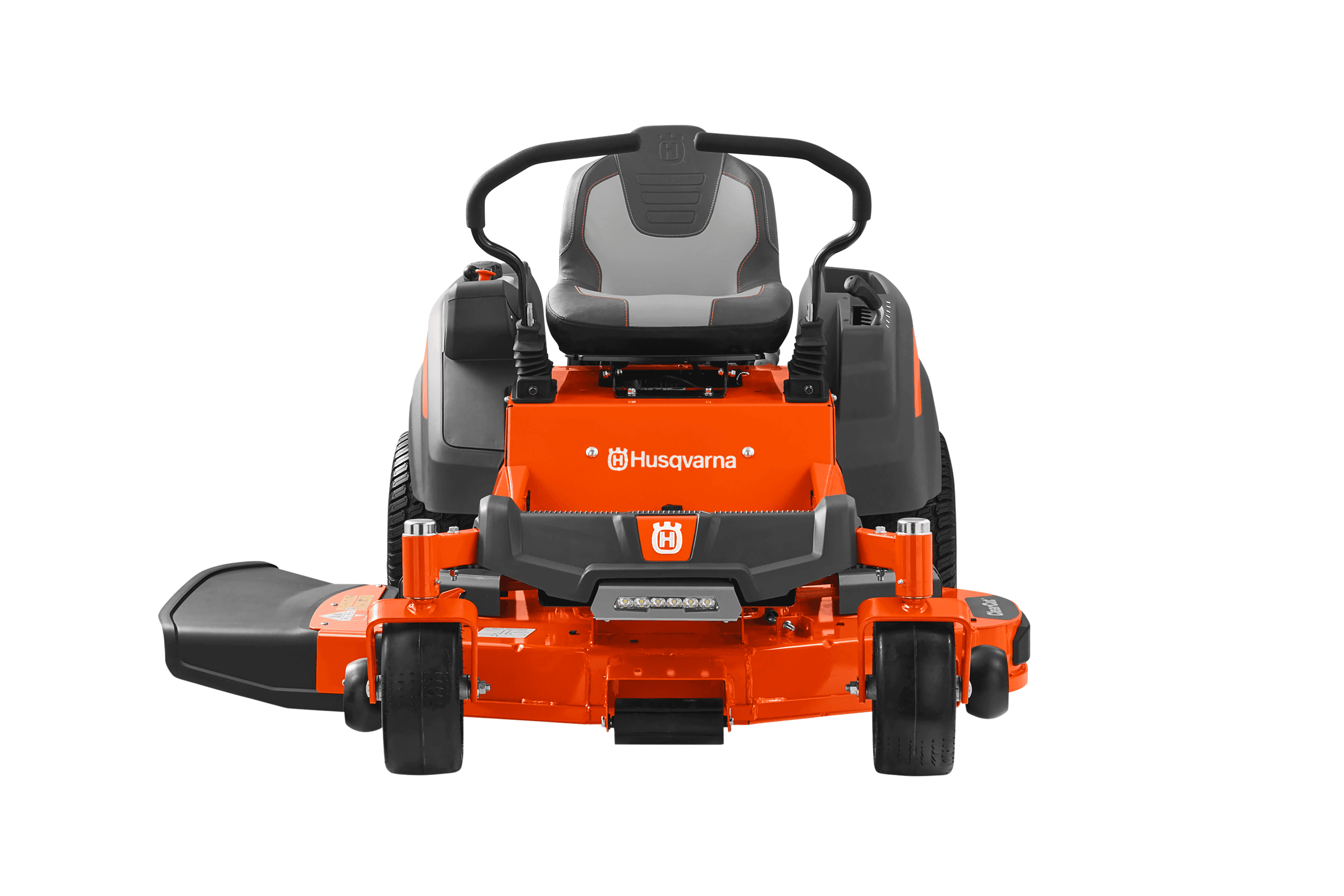

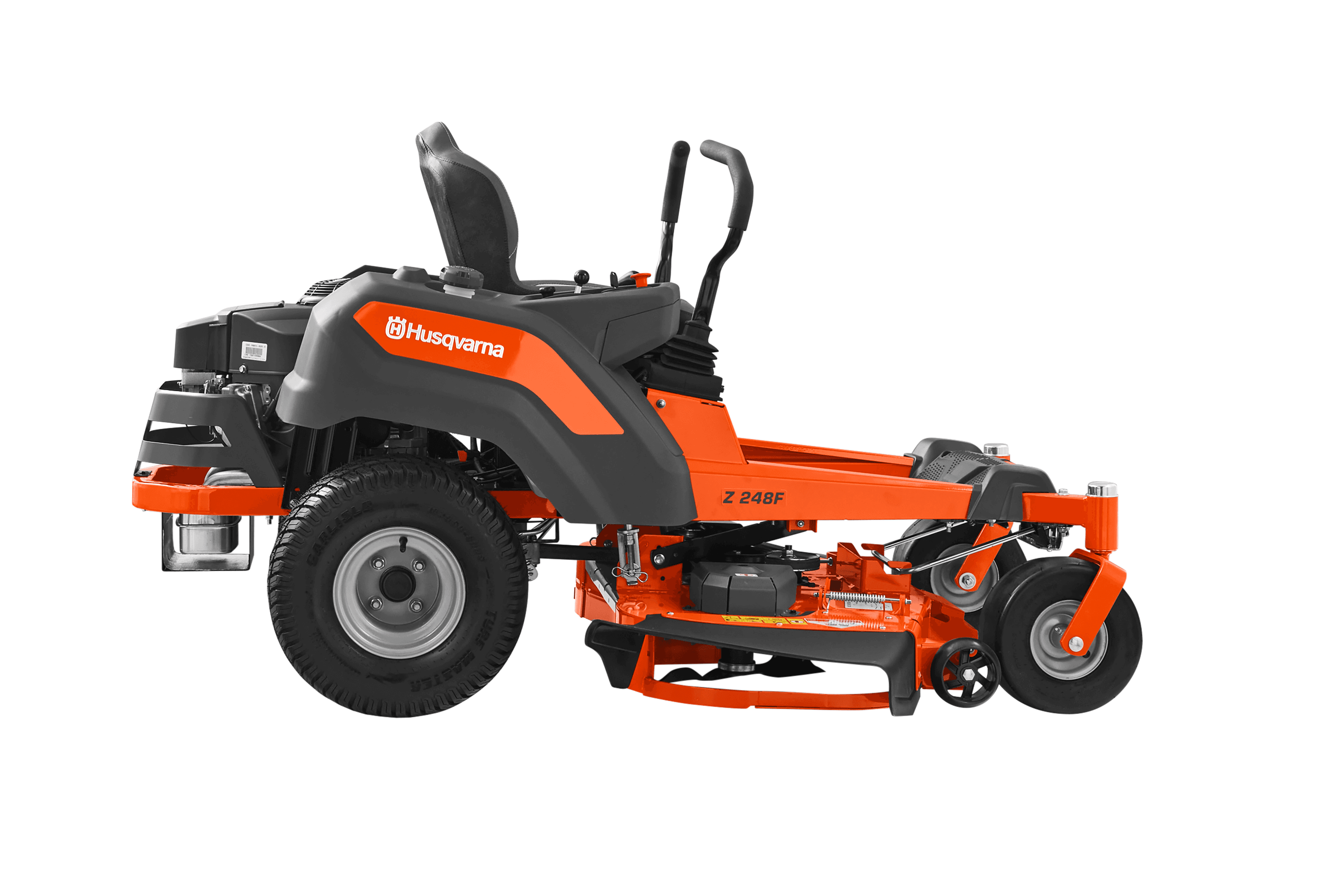

Z248F

$9,699.00Rec. retail price incl. GST SKU: 970458901

Cutting width122 cm
Engine nameFR Series

Product description

Performance and style hit the grass running with the all new Z248F Zero Turn Mower. Cutting edge design, proven performance and new innovative features combine to make lawn maintenance an event instead of a chore.

Product Information

Features (14)

ClearCut™ Fabricated Deck

Specially-designed 48 in. deck built for superior cutting performance whether discharging, bagging or mulching

Cast Iron Blade Housings

Built for durability with sealed ball bearings for long lifetime

Automatic Park Brake

Brake automatically engages and disengages as steering levers are moved in and out

The deck lift system is spring assisted for ease of use and conveniently located within easy reach of the operator. image

Convenient Deck Lift

Spring Assisted Deck Lift System

Premium Integrated Transmission

Lasts longer with reduced maintenance thanks to zero-turn specific features

LED Headlights

Illuminates a 50% larger area than traditional incandescent lights

User-Friendly Controls

Quickly and easily access mower controls

Removable Foot Plate

Quick access to cutting deck for easy maintenance and clean-up

The footrest area incorporates generous non-slip surfaces for safe and comfortable use. image

Anti-slip foot area

Bumper

The robust frame and casters ensure durability and reduced chassis flex. image

Rugged frame and casters

Rugged frame and casters ensure durability

The rear guard protects the engine from impact as well as limits access to hot surfaces for safety. image

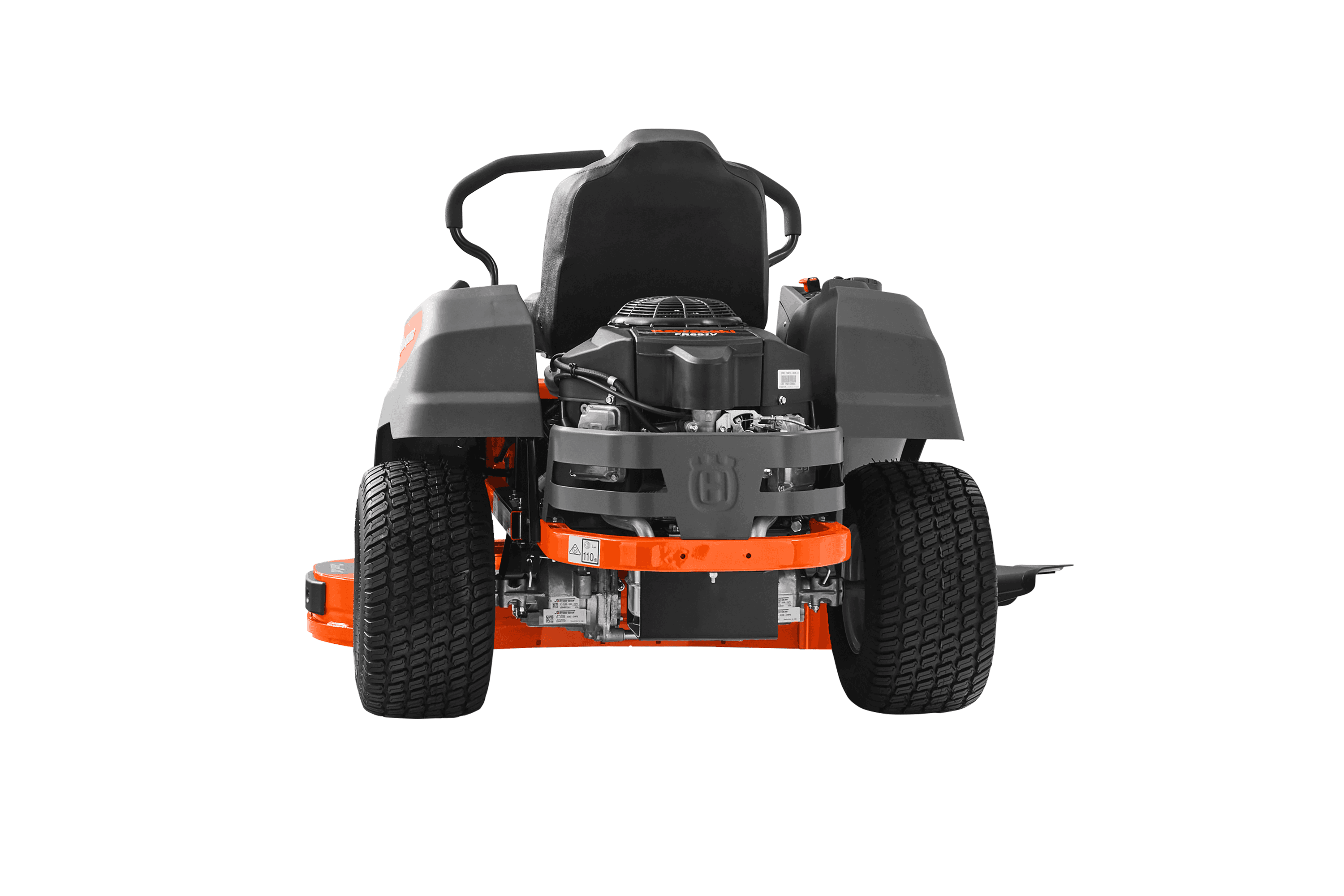

Rear engine guard

Kawasaki engine

Delivers smooth, quiet and reliable power with heavy-duty components for a long life

Rubber bellows prevent debris and moisture from entering the control system image

Dust protection

Specifications	Art No: 970458901
Cutting width	122 cm
Output shaft power	17.2 kW
Cylinder displacement	726 cm³
Weight (complete product w/o side packed articles)	269.89 kg
Fuel tank volume	13.25 l
Sound pressure level at operators ear	80 dB(A)
Power rating	1715 W
Base machine, height	101.6 cm
Base machine, length	190.5 cm
Base machine, width	111 cm
Base machine, width (chute down)	152.4 cm
Base machine, width (chute up)	127 cm
Battery capacity	18 Ah
Battery pack weight	7.03 kg
Battery voltage	12 V
Blades	3 pcs
Blade-tip speed	93.98 m/s
Clutch rating	117.96 Nm
Cutting height max	101.6 mm
Cutting height min	38.1 mm
Cutting width, max	121.92 cm
Cutting width, min	121.92 cm
Deck thickness	3.4 mm
Fuel consumption	315 g/kWh
Fuel tank volume	3.5 gal (US)
Horsepower	17.15 kW
Oil capacity	2.1 l
Productivity	10117.14 m²/h
Pump displacement	10 cm³
Sound power level, guaranteed (LWA)	110 dB(A)
Sound power level, measured	110 dB(A)
Speed forward max	10.5 km/h
Speed forward min	0 km/h
Speed reverse max	5.23 km/h
Tyre size, front Diameter	11 in
Tyre size, front Width	6 in
Uncut circle	0 cm
Wheel/rim size, front Diameter	5 in
Wheelbase	119 cm
