Homeowner/Landowner Chainsaws

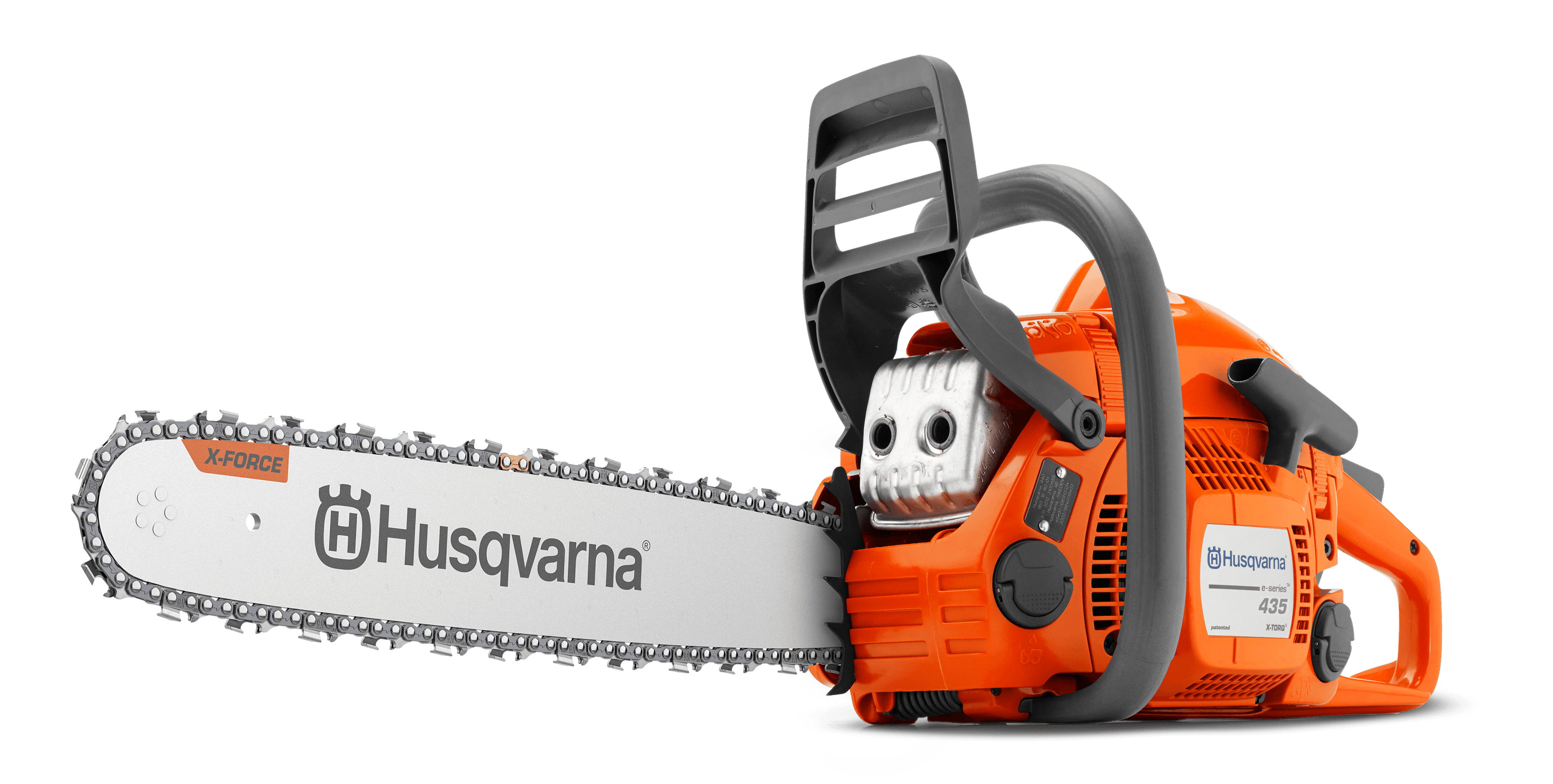

435 e-series II
$779.00Rec. retail price incl. GST SKU: 970559936- Output shaft power1.6 kW
- Cylinder displacement40.9 cm³
Product description
Husqvarna 435 is designed for the landowner who prefer a lightweight and efficient all-round petrol chainsaw that’s exceptionally easy to start and manoeuvre. Delivers versatile cutting capacity in a low-weight package, equipped with an array of features for smooth starting and handling: Flip-up tank caps, fuel pump, and auto-return stop switch. The fuel-efficient X-Torq® engine ensures low emission levels. The “e” version adds tool-less chain tensioner and Smart Start® for even easier handling.
Product Information
Features (13)
Flip-Up Fuel Cap
Easy to open and secures firmly, even when wearing thick gloves
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Felling Marks
Dedicated marks for increased felling precision
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Air Injection
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Powerful and Efficient X-TORQ® Engine
Great power and efficiency
Three-piece crankshaft
Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs
Two mass principle
Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Snap-Lock Cylinder Cover
Saves time when changing spark plugs and cleaning
Inertia chain brake
Reduces the likelihood of injury due to kickback
Easy to start
Easy to start
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Specifications | Art No: 970559936 |
---|---|
Output shaft power | 1.6 kW |
Weight (excl. cutting equipment) | 4.4 kg |
Cylinder displacement | 40.9 cm³ |
Fuel tank volume | 0.37 l |
Sound pressure level at operators ear | 102 dB(A) |
Bar length | 38 cm |
Clutch engagement speed (±120) | 4300 rpm |
Electrode gap | 0.5 mm |
Equivalent vibration level (ahv, eq) front handle | 3.8 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 4.2 m/s² |
Exhaust emissions (CO average) EU | 355.73 g/kWh |
Exhaust emissions (CO average) EPA | 312.48 g/kWh |
Exhaust emissions (HC average) EU | 42.44 g/kWh |
Exhaust emissions (HC average) CARB | 35.54 g/kWh |
Exhaust emissions (NOx average) EU | 0.66 g/kWh |
Exhaust emissions (NOx average) EPA | 0.73 g/kWh |
Fuel consumption | 652 g/kWh |
Idling speed | 2900 rpm |
Maximum power speed | 9000 rpm |
Oil tank volume | 0.25 l |
Product size height | 28.2 cm |
Product size length | 38.7 cm |
Product size width | 20.7 cm |
Recommended bar length, max | 18 in |
Recommended bar length, max | 45 cm |
Recommended bar length, min | 13 in |
Recommended bar length, min | 33 cm |
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound power level, measured | 112 dB(A) |
Torque, max. | 2 Nm |
Torque, max. at rpm | 6300 rpm |
